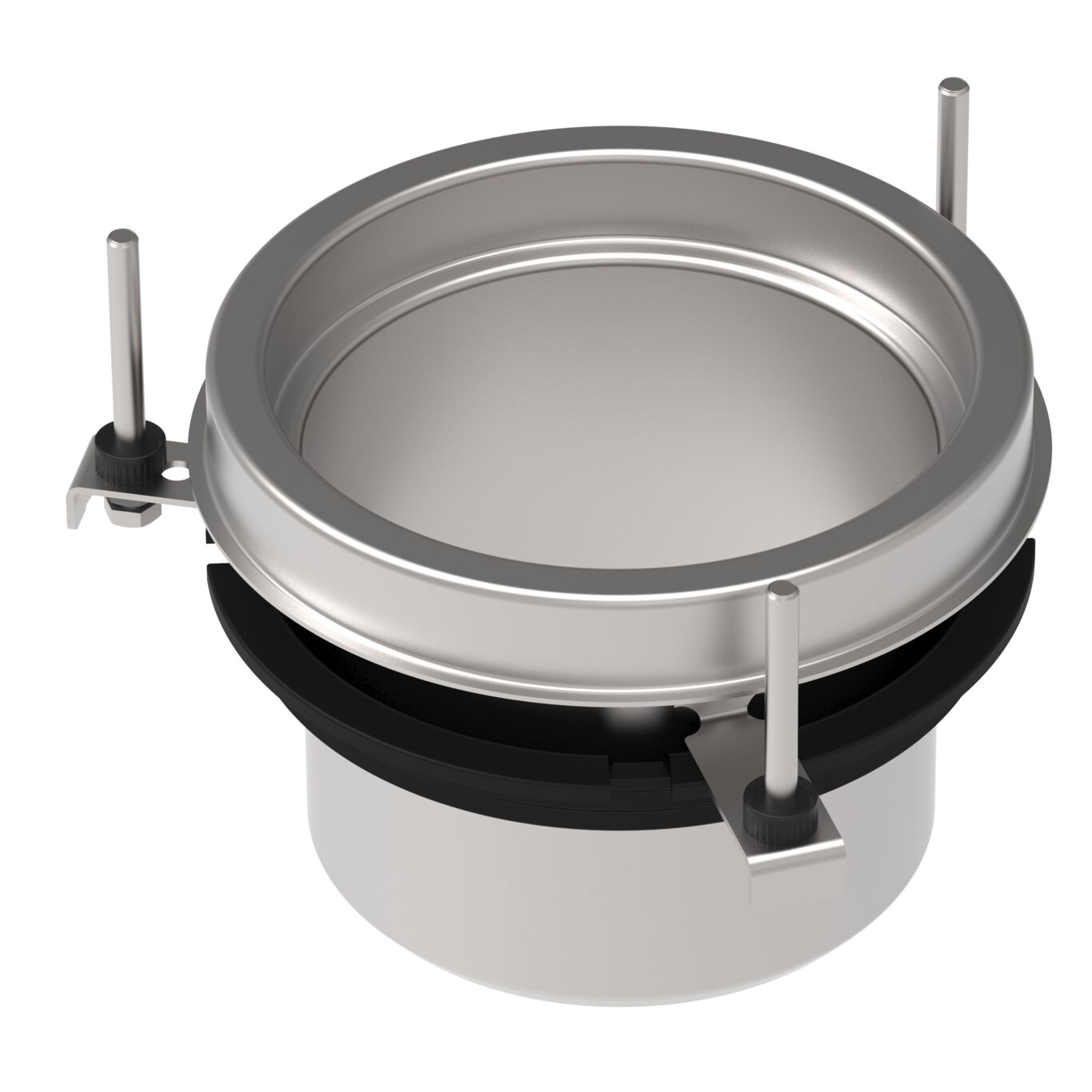

UPPER PART - (774.502.000)
×
![]()
Part Of the Series: Upper part-No membrane-205
Type no.: 774.502.000
EAN no.: 5705499112337
LVI no.: 3303838

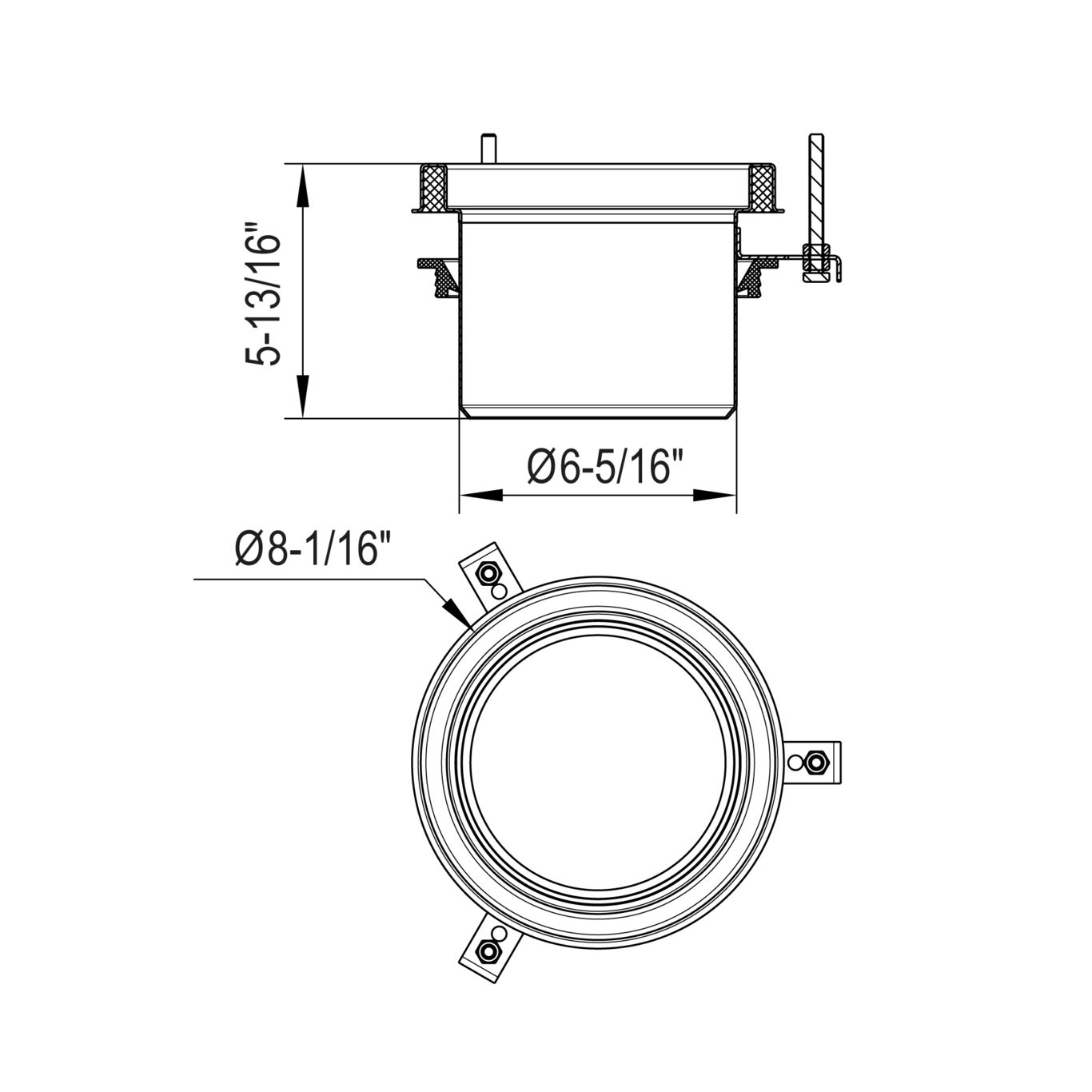

Size: Ø205
UPPER PART
-Floor: resin
-Frame: Ø205mm
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-113-R, BFD-113-R-SO, BFD-113-R-TPT, BFD-114-R, BFD-114-R-SO, BFD-114-R-TPT, BFD-213-R, BFD-213-R-SO, BFD-213-R-TPT, BFD-214-R, BFD-214-R-SO
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Floor | Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 147 |
| Holes for screws in drains | 0 |
| Outlet Diameter (mm) | 160 |
| Outlet Diameter (inch) | 6 |
| Shape of frame | Round |
| Size of frame (mm) | Ø205 |
| Size of Frame (inch) | Ø8-1/8 |
| Weight (kg) | 2.22 |
| Weight (lbs) | 4.89 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
