GASTIGHT BLANK PLATE CIRCLE - (790.173.000.07 S)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.07 S
EAN no.: 5705499138726
VVS no.: 153559522
Size: Ø195

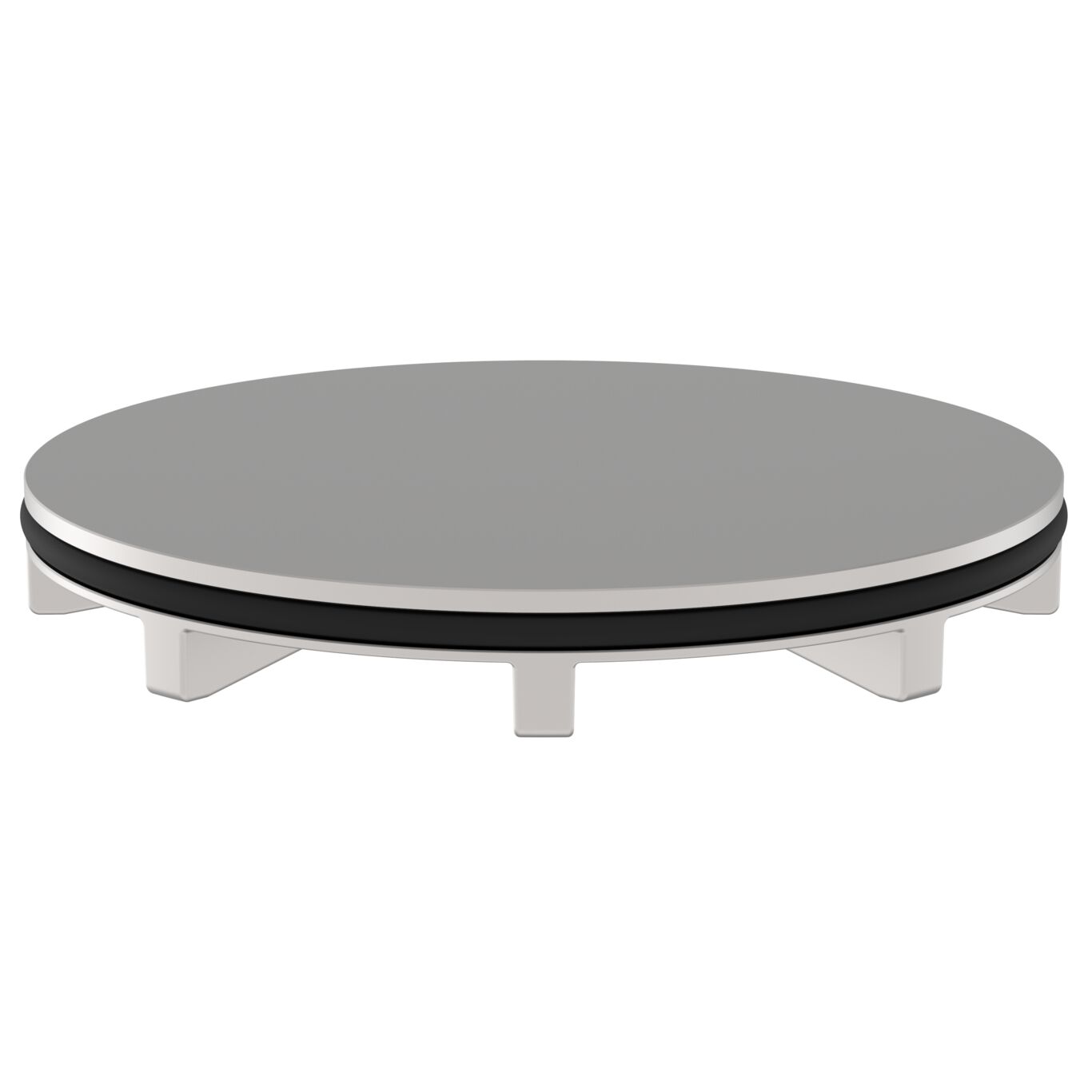

GASTIGHT BLANK PLATE CIRCLE
-Grating: Ø174mm
-Stainless steel: AISI316L/EN1.4404
Part of USA order number: BFD-513-GT-316
| Product Specification | |
|---|---|
| Load class EN1253 | N250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Holes for screws in other products | 0 |
| Shape of frame | Round |
| Size of frame (mm) | Ø195 |
| Size of Frame (inch) | Ø7-5/8 |
| Weight (kg) | 2.41 |
| Weight (lbs) | 5.31 |
-
Approval Information
For approval information, please refer to the below approval certificates.
