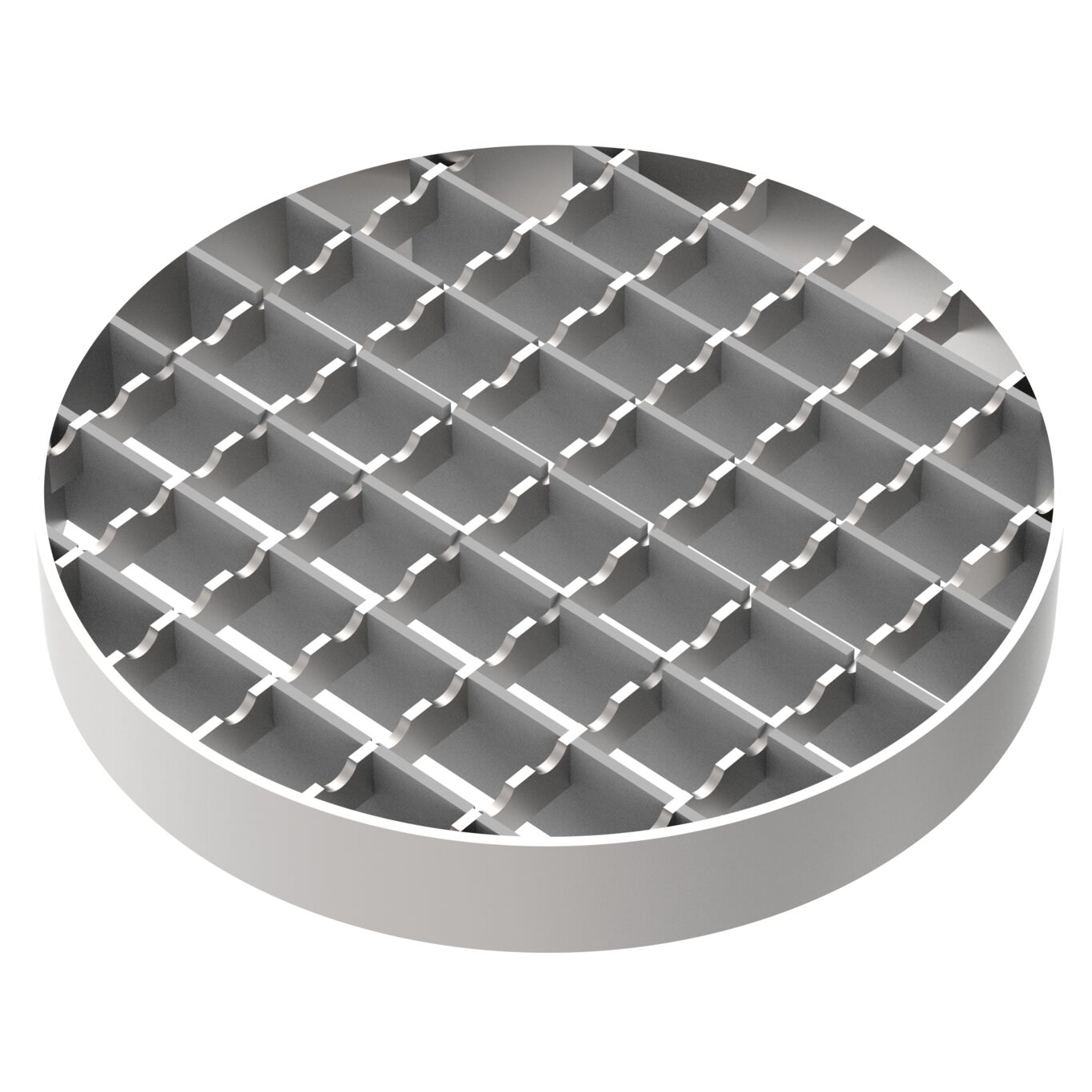

MESH GRATING CIRCLE - (790.173.000.22)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.22
EAN no.: 5705499113600
RSK no.: 7121882
NRF no.: 3395168
LVI no.: 3304056
Size: Ø195
MESH GRATING CIRCLE
-Grating: Ø173mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Load class EN1253 | R50 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non Slip | R12 |
| Holes for screws in other products | 0 |
| Shape of frame | Round |
| Size of frame (mm) | Ø195 |
| Size of Frame (inch) | Ø7-5/8 |
| Weight (kg) | 0.53 |
| Weight (lbs) | 1.17 |
-
Approval Information
For approval information, please refer to the below approval certificates.
