LADDER GRATING CIRCLE - (790.173.000.28)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.28
EAN no.: 5705499128628
RSK no.: 7123464
NRF no.: 3397192
Size: Ø195

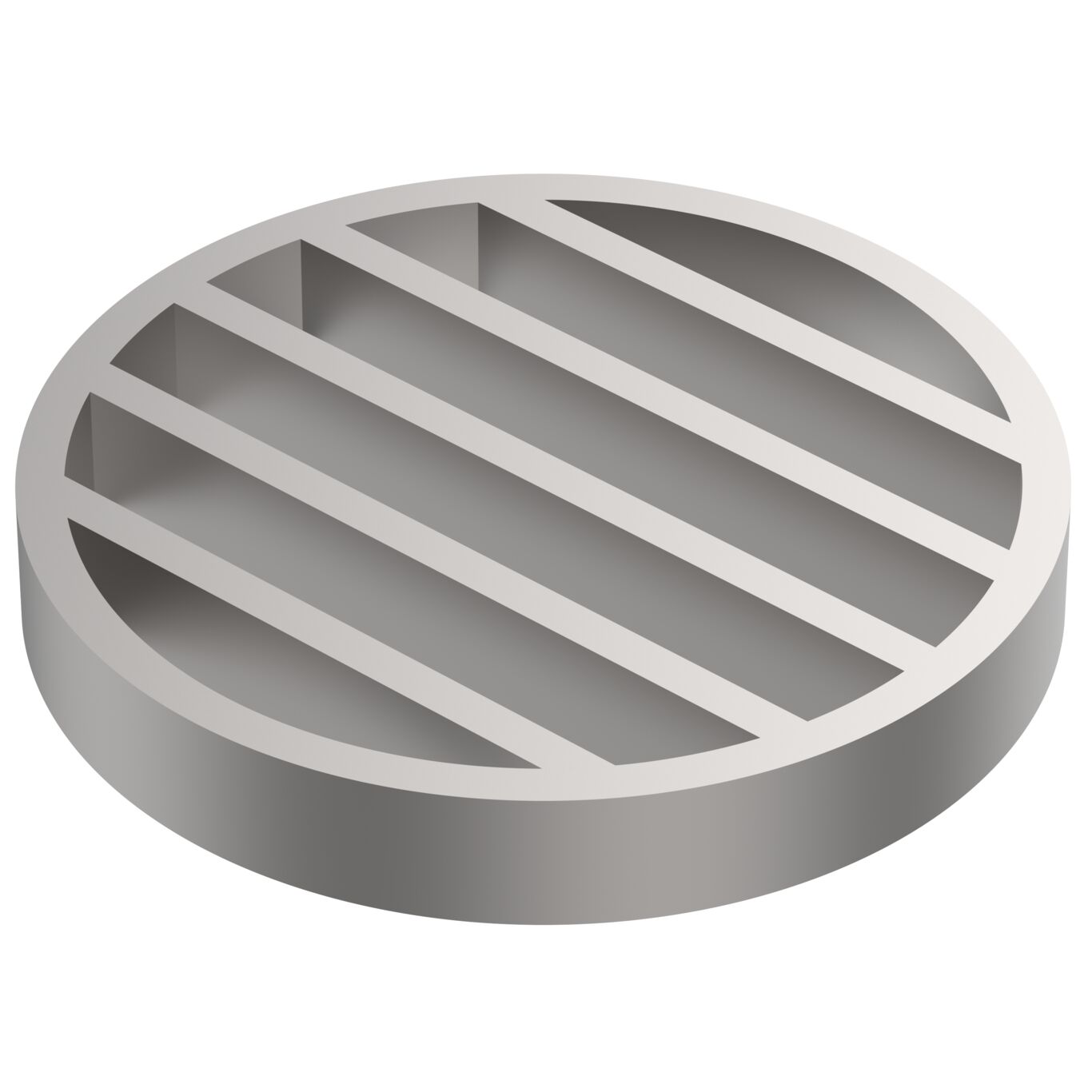

LADDER GRATING CIRCLE
-8mm material, fully welded
-Grating: Ø173mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Load class EN1253 | N250 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non Slip | R11 |
| Holes for screws in other products | 0 |
| Shape of frame | Round |
| Size of frame (mm) | Ø195 |
| Size of Frame (inch) | Ø7-5/8 |
| Weight (kg) | 3 |
| Weight (lbs) | 6.61 |
-
Approval Information
For approval information, please refer to the below approval certificates.
