INDUSTRIAL DRAIN - (760.602.110)
×
![]()
Part Of the Series: Drain-Vinyl-232
Type no.: 760.602.110
EAN no.: 5705499109603
VVS no.: 153050402
RSK no.: 7121835
NRF no.: 3396088
LVI no.: 3303533
Size: Ø232

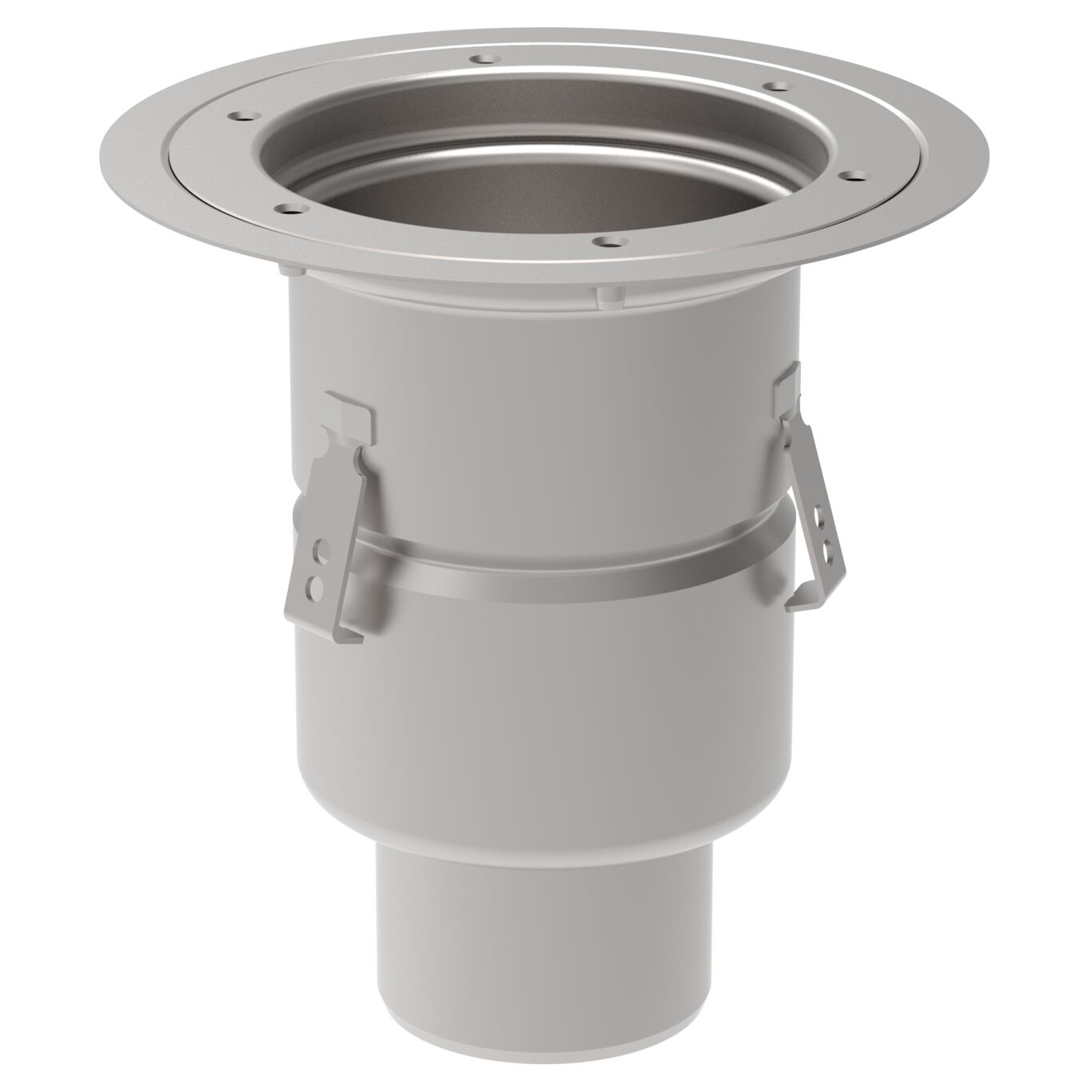

INDUSTRIAL DRAIN
-Floor: vinyl
-Frame: Ø232mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-514
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 290 |
| Number of Inlets | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Diameter (inch) | 4 |
| Outlet Direction | Vertical |
| Shape of frame | Round |
| Size of frame (mm) | Ø232 |
| Size of Frame (inch) | Ø9-1/8 |
| Weight (kg) | 2.29 |
| Weight (lbs) | 5.05 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
