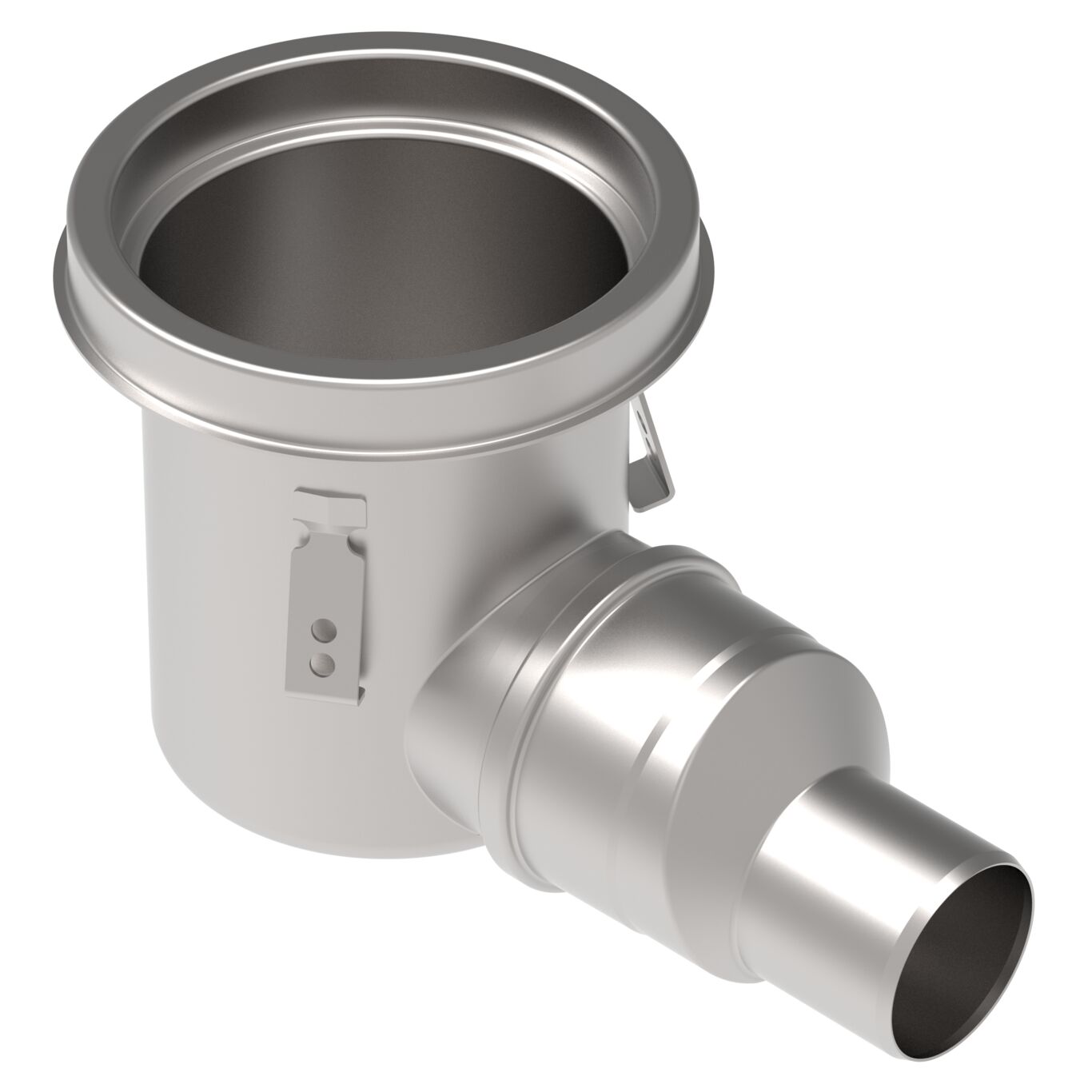

INDUSTRIAL DRAIN - (763.502.075)
×
![]()
Part Of the Series: Drain-No membrane-205
Type no.: 763.502.075
EAN no.: 5705499110067
RSK no.: 7123994
NRF no.: 3396094
LVI no.: 3303621

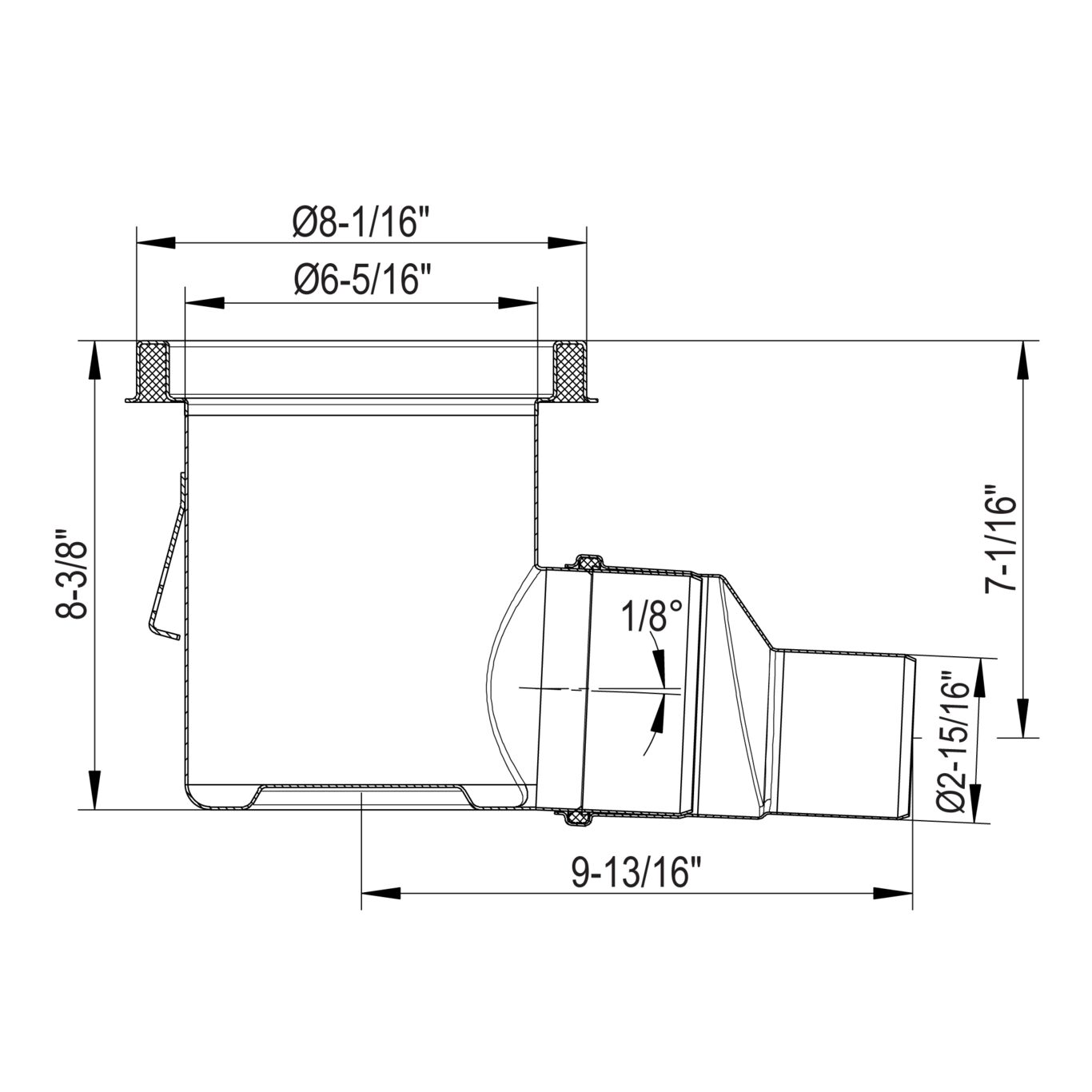

Size: Ø205
INDUSTRIAL DRAIN
-Floor: resin
-Frame: Ø205mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-413-SO
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 213 |
| Number of Inlets | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Diameter (inch) | 3 |
| Outlet Direction | Horizontal |
| Shape of frame | Round |
| Size of frame (mm) | Ø205 |
| Size of Frame (inch) | Ø8-1/8 |
| Weight (kg) | 3.03 |
| Weight (lbs) | 6.68 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
