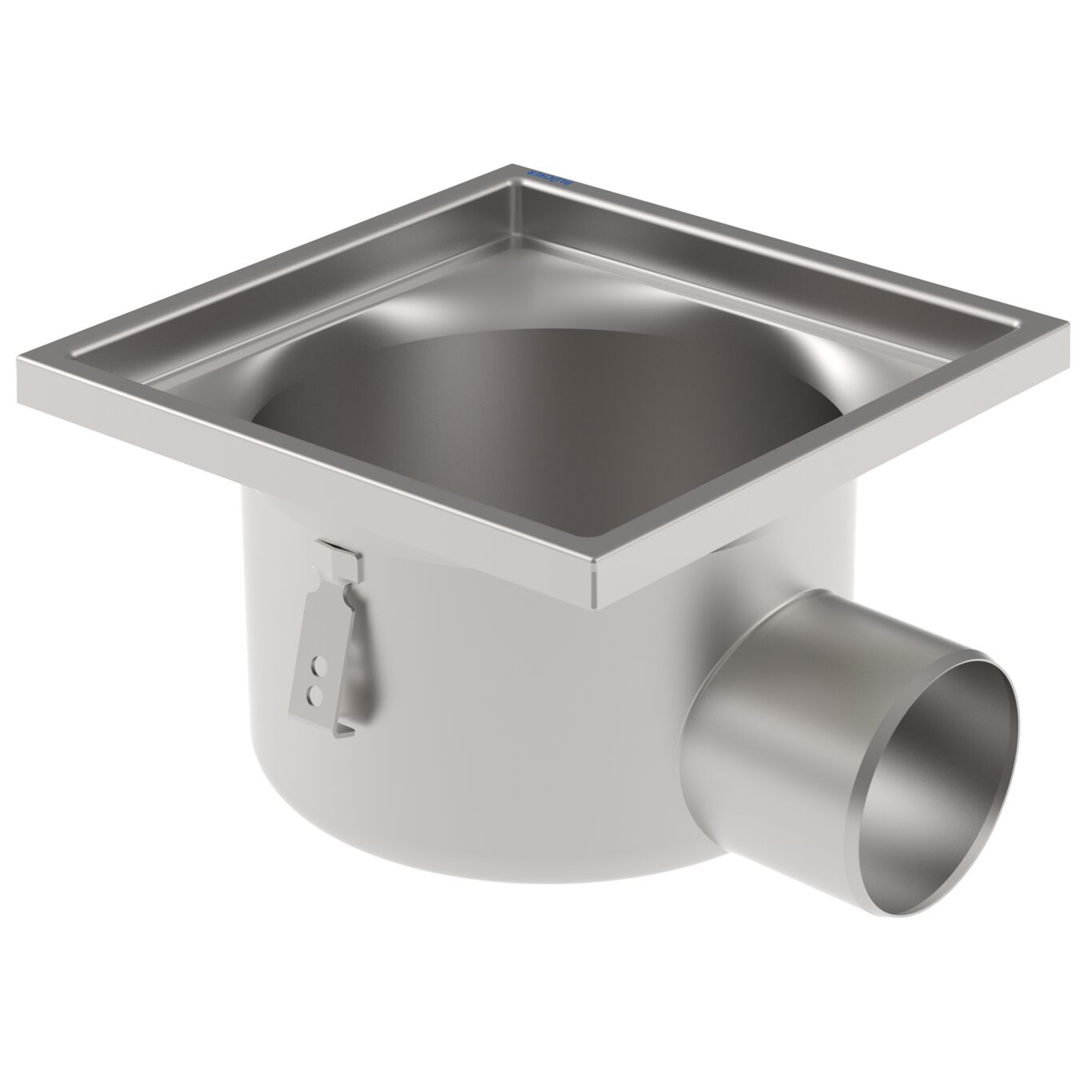

INDUSTRIAL DRAIN, LOW - (726.403.110)
×
![]()
Part Of the Series: Drain-No membrane-300
Type no.: 726.403.110
EAN no.: 5705499108903
VVS no.: 153042316
NRF no.: 3396367
LVI no.: 3303655
Size: 300x300
INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled

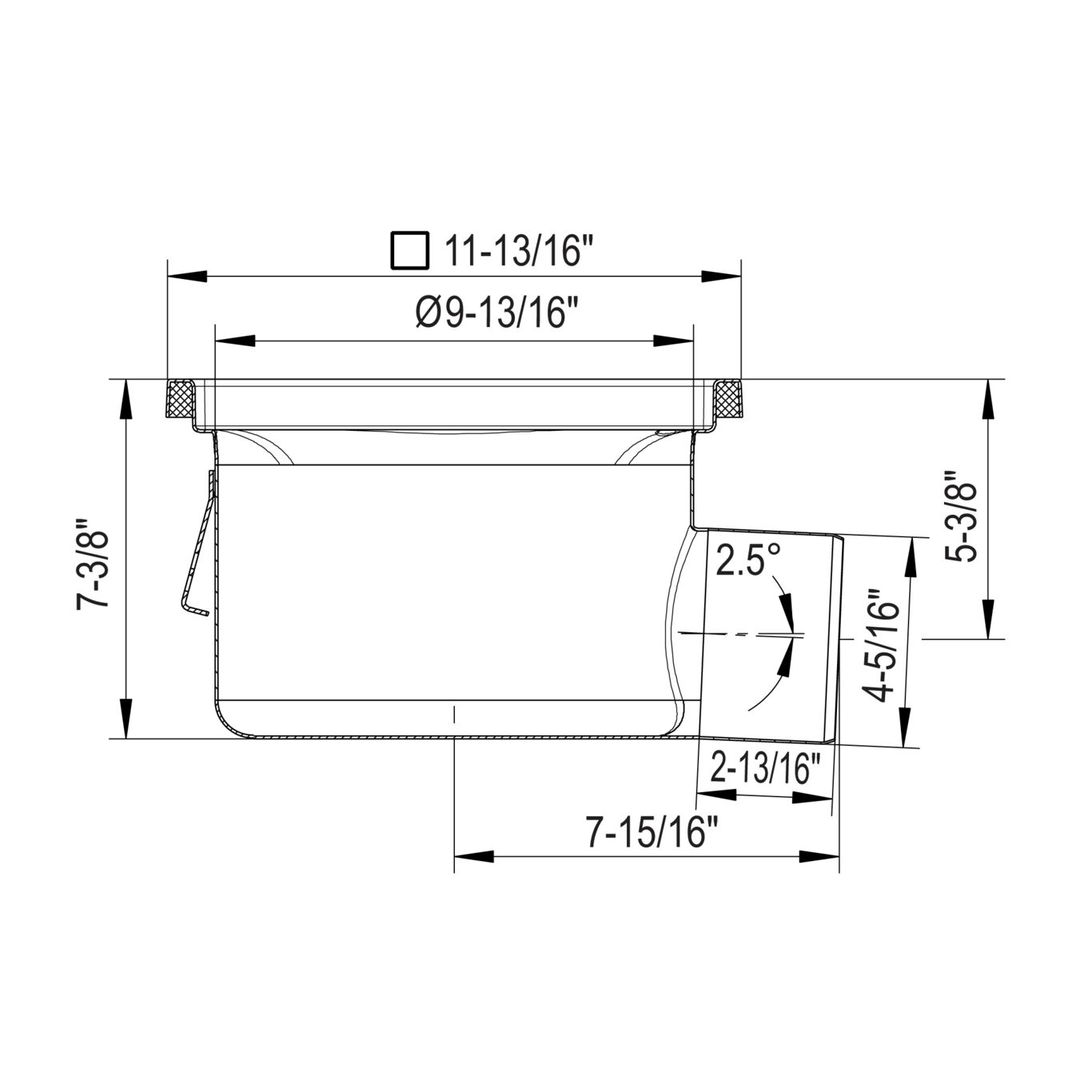

-No membrane, frame: 11-3/4 x 11-3/4 inch
-Outlet: Ø4 inch, horizontal
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-343-SO, BFD-346-SO
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Diameter (inch) | 4 |
| Outlet Direction | Horizontal |
| Shape of frame | Square |
| Size of frame (mm) | 300x300 |
| Size of Frame (inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 4.48 |
| Weight (lbs) | 9.88 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
