MESH GRATING SQUARE - (790.268.000.22)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.000.22
EAN no.: 5705499113655
RSK no.: 7121881
NRF no.: 3396424
LVI no.: 3304041
Size: 300x300

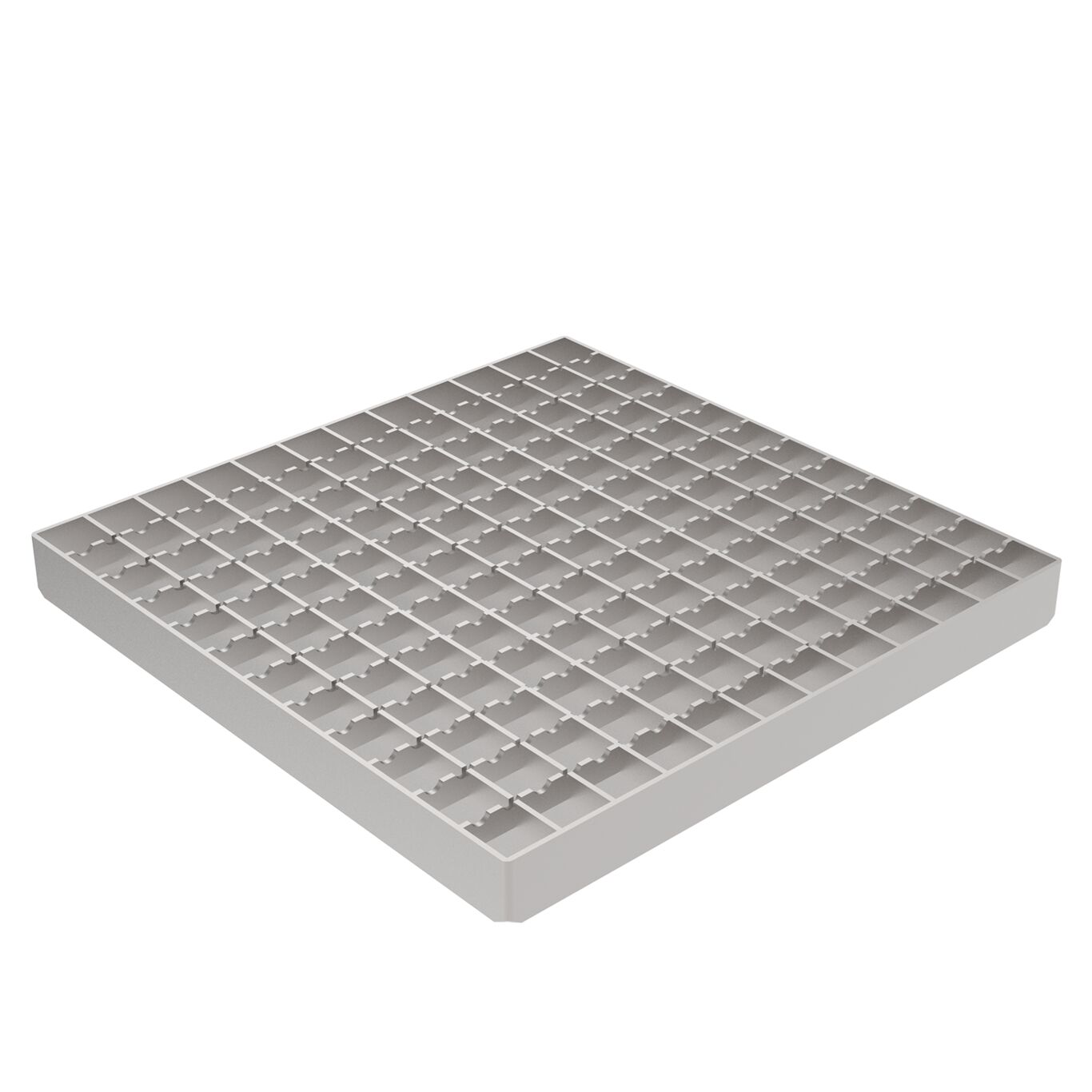

MESH GRATING SQUARE

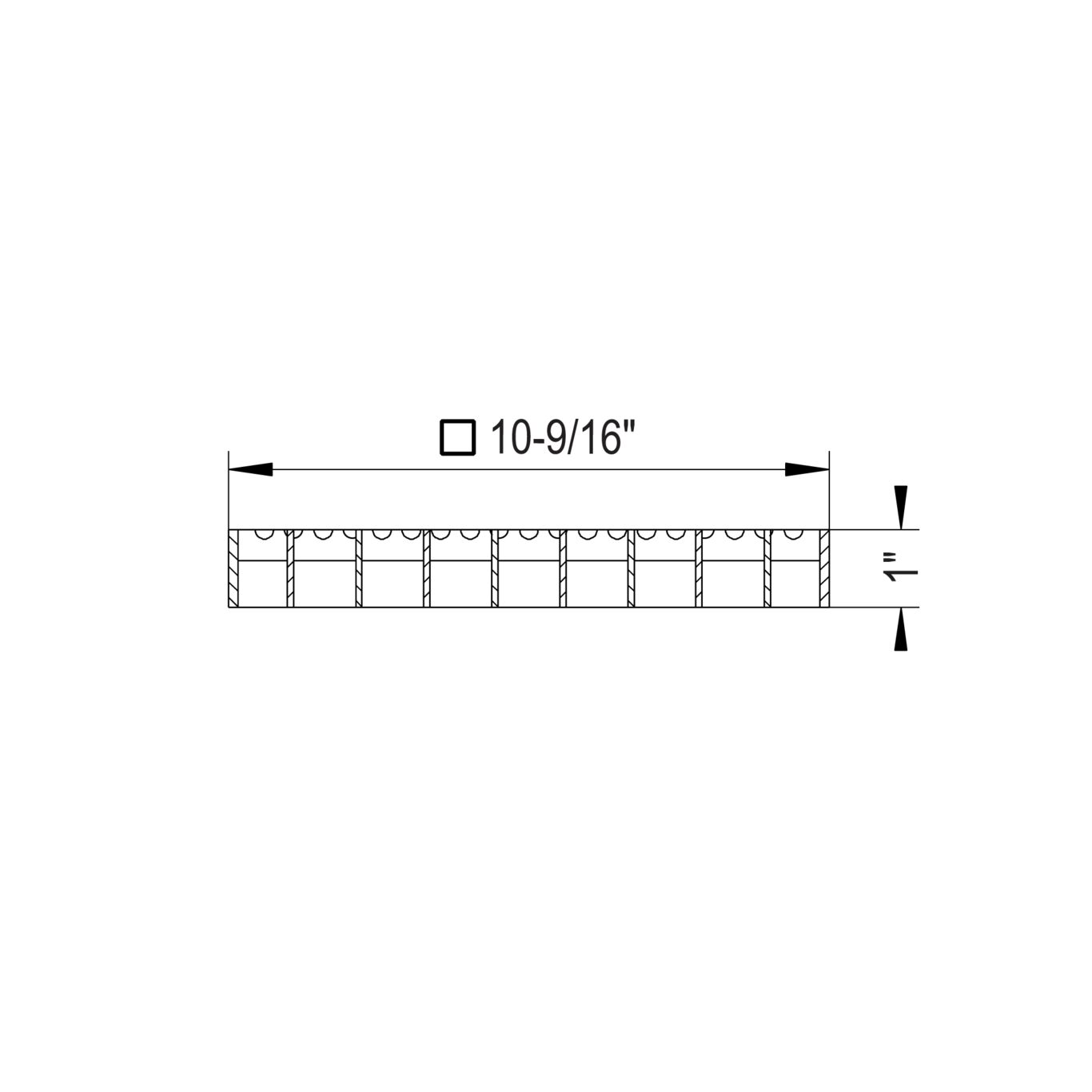

-Grating: 268x268mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Load class EN1253 | L15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non Slip | R12 |
| Holes for screws in other products | 0 |
| Shape of frame | Square |
| Size of frame (mm) | 300x300 |
| Size of Frame (inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 1.67 |
| Weight (lbs) | 3.68 |
-
Approval Information
For approval information, please refer to the below approval certificates.
