INDUSTRIAL DRAIN - (760.403.110)
×
![]()
Part Of the Series: Drain-No membrane-300
Type no.: 760.403.110
EAN no.: 5705499109429
VVS no.: 153040316
RSK no.: 7121828
NRF no.: 3396083
LVI no.: 3303511

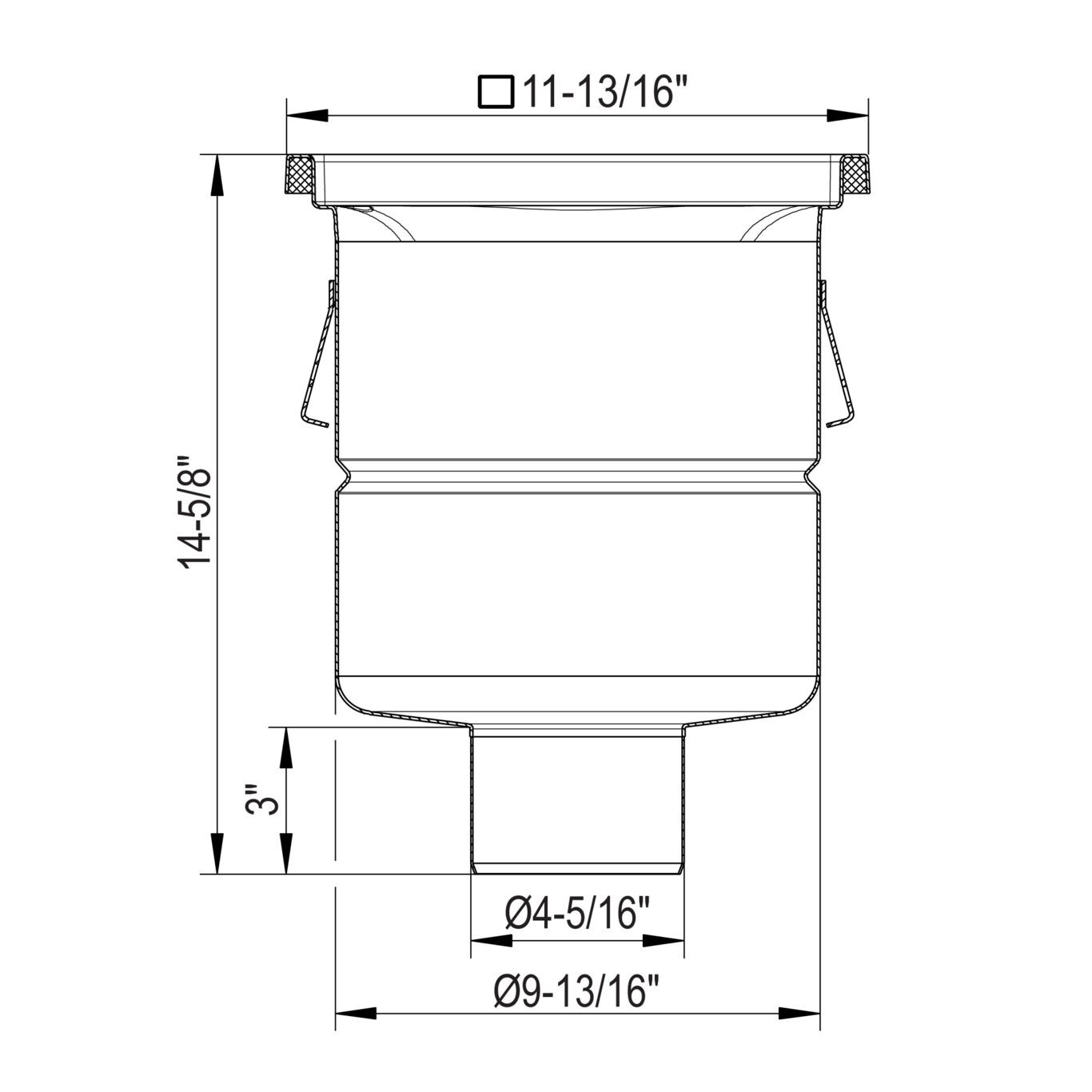

Size: 300x300

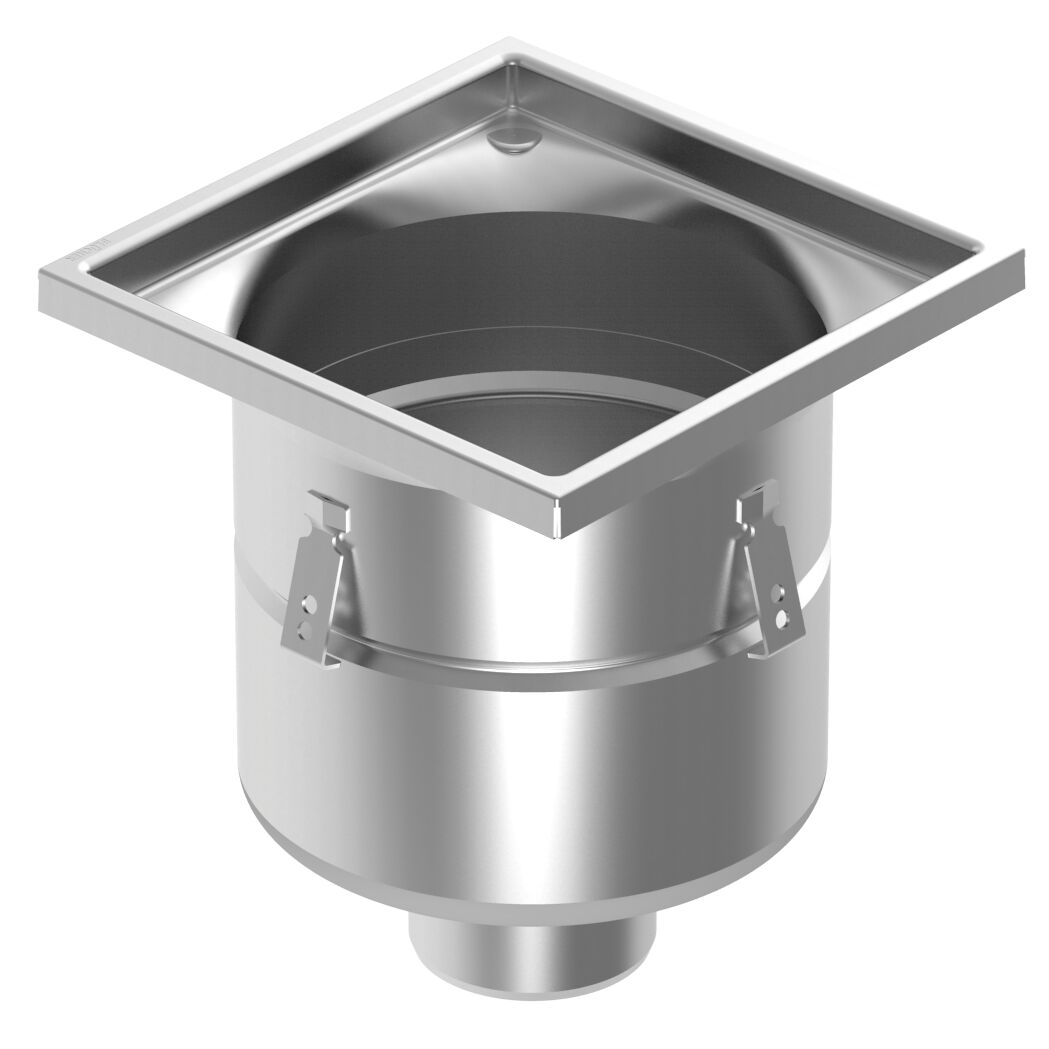

INDUSTRIAL DRAIN
-Floor: concrete and tiled
-No membrane, frame: 300x300mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-334
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Diameter (inch) | 4 |
| Outlet Direction | Vertical |
| Shape of frame | Square |
| Size of frame (mm) | 300x300 |
| Size of Frame (inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 5.48 |
| Weight (lbs) | 12.08 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
