TILED/EPOXY GRATING CIRCLE - (790.273.000.06)
×
![]()
Part Of the Series: Grating-Drain-305-Vinyl-332
Type no.: 790.273.000.06
EAN no.: 5705499128567
RSK no.: 7123457
NRF no.: 3397196
LVI no.: 3303993

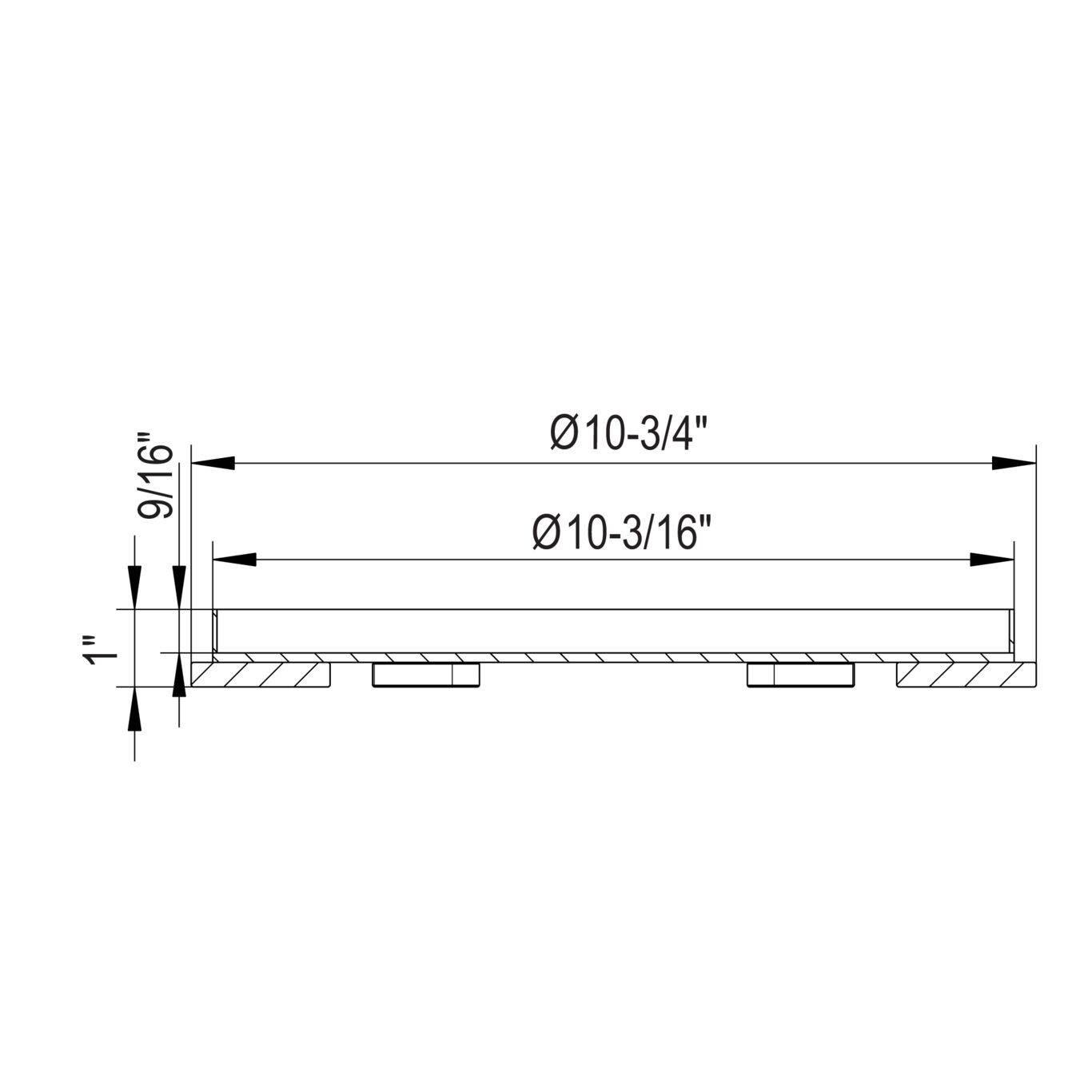

Size: Ø295
TILED/EPOXY GRATING CIRCLE
-Grating: Ø273mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Load class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Holes for screws in other products | 0 |
| Shape of frame | Round |
| Size of frame (mm) | Ø295 |
| Size of Frame (inch) | Ø11-5/8 |
| Weight (kg) | 1.57 |
| Weight (lbs) | 3.46 |
-
Approval Information
For approval information, please refer to the below approval certificates.
