LADDER GRATING CIRCLE - (790.273.000.28)
×
![]()
Part Of the Series: Grating-Drain-305-Vinyl-332
Type no.: 790.273.000.28
EAN no.: 5705499128635
RSK no.: 7123465
NRF no.: 3397197

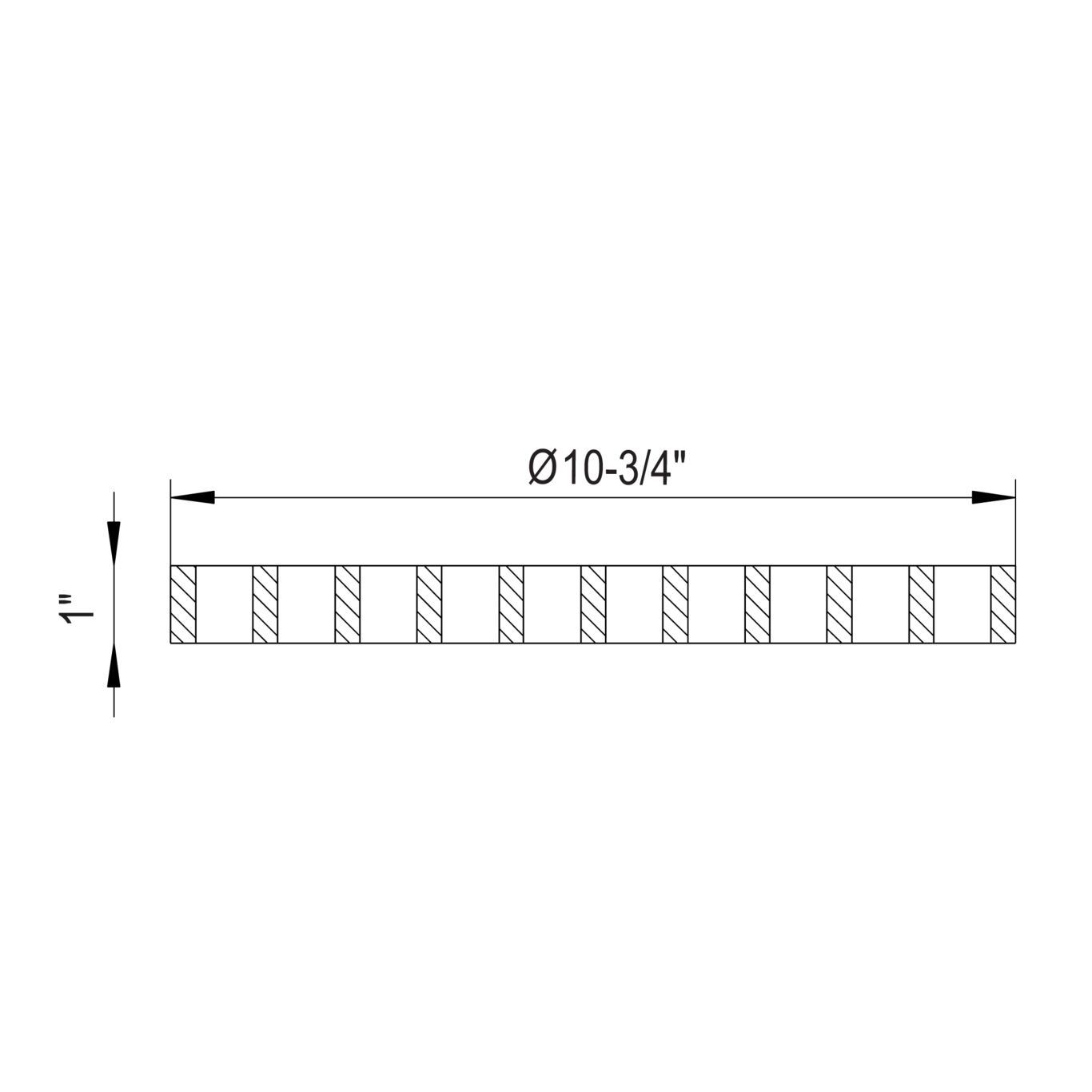

Size: Ø295
LADDER GRATING CIRCLE
-8mm material, fully welded
-Grating: Ø273mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Load class EN1253 | M125 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non Slip | R11 |
| Holes for screws in other products | 0 |
| Shape of frame | Round |
| Size of frame (mm) | Ø295 |
| Size of Frame (inch) | Ø11-5/8 |
| Weight (kg) | 4.35 |
| Weight (lbs) | 9.59 |
-
Approval Information
For approval information, please refer to the below approval certificates.
