SLOT GRATING SQUARE - (790.268.001.10)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.001.10
EAN no.: 5705499113709
NRF no.: 3396418
LVI no.: 3304086
Size: 300x300

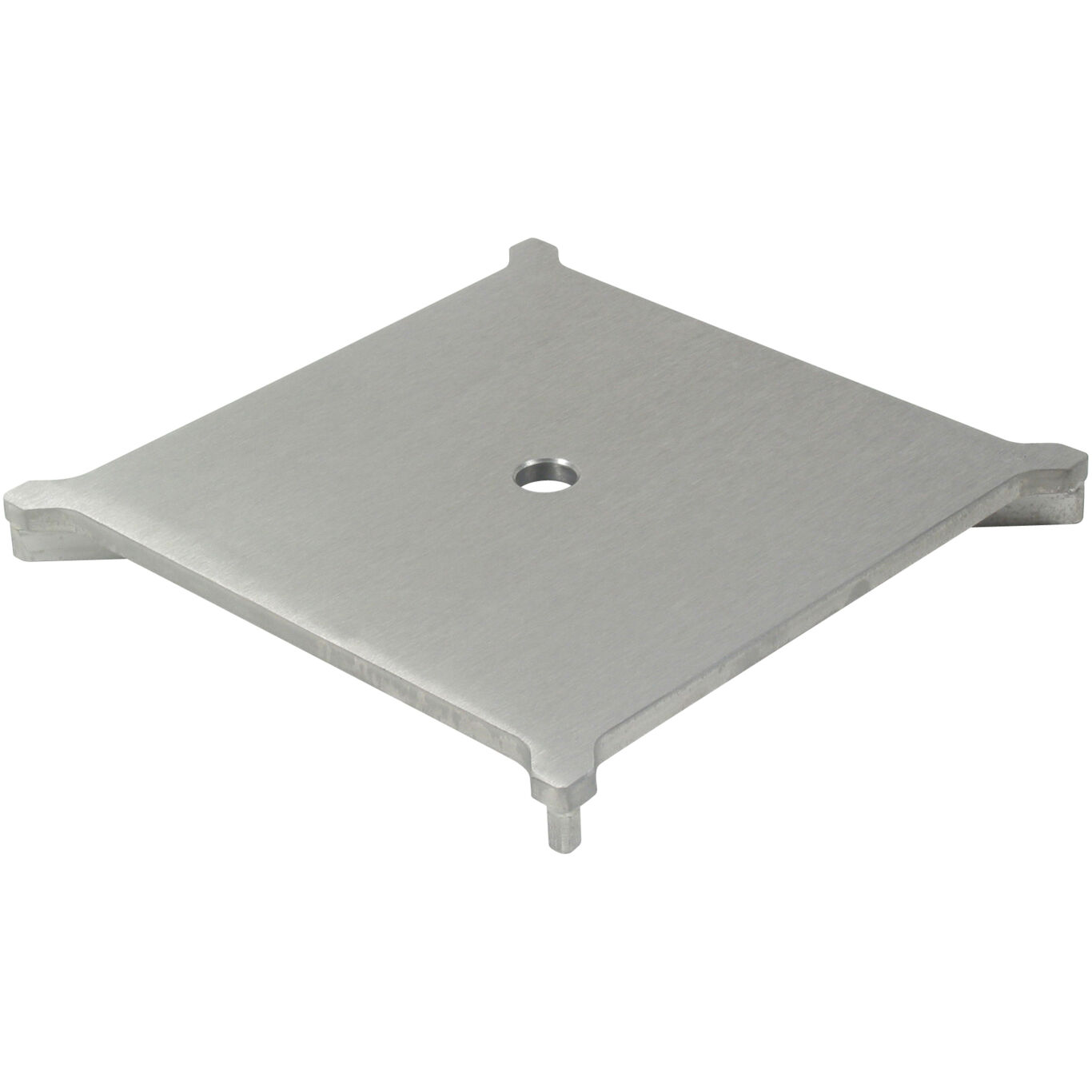

SLOT GRATING SQUARE
-With screw lock

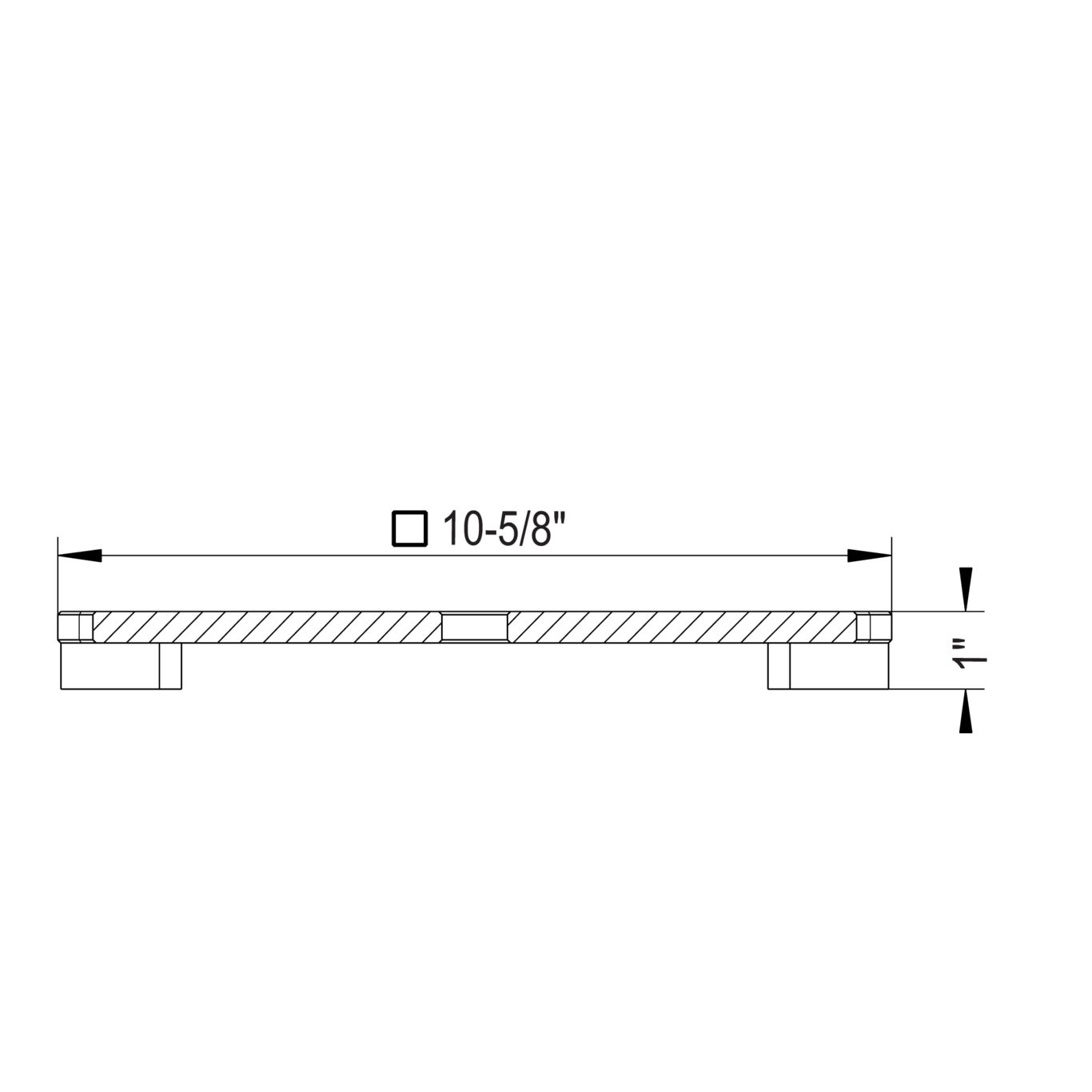

-Grating: 270x270mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Load class EN1253 | R50 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non Slip | R10 |
| Holes for screws in other products | 2 |
| Shape of frame | Square |
| Size of frame (mm) | 300x300 |
| Size of Frame (inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 5.11 |
| Weight (lbs) | 11.27 |
-
Approval Information
For approval information, please refer to the below approval certificates.
