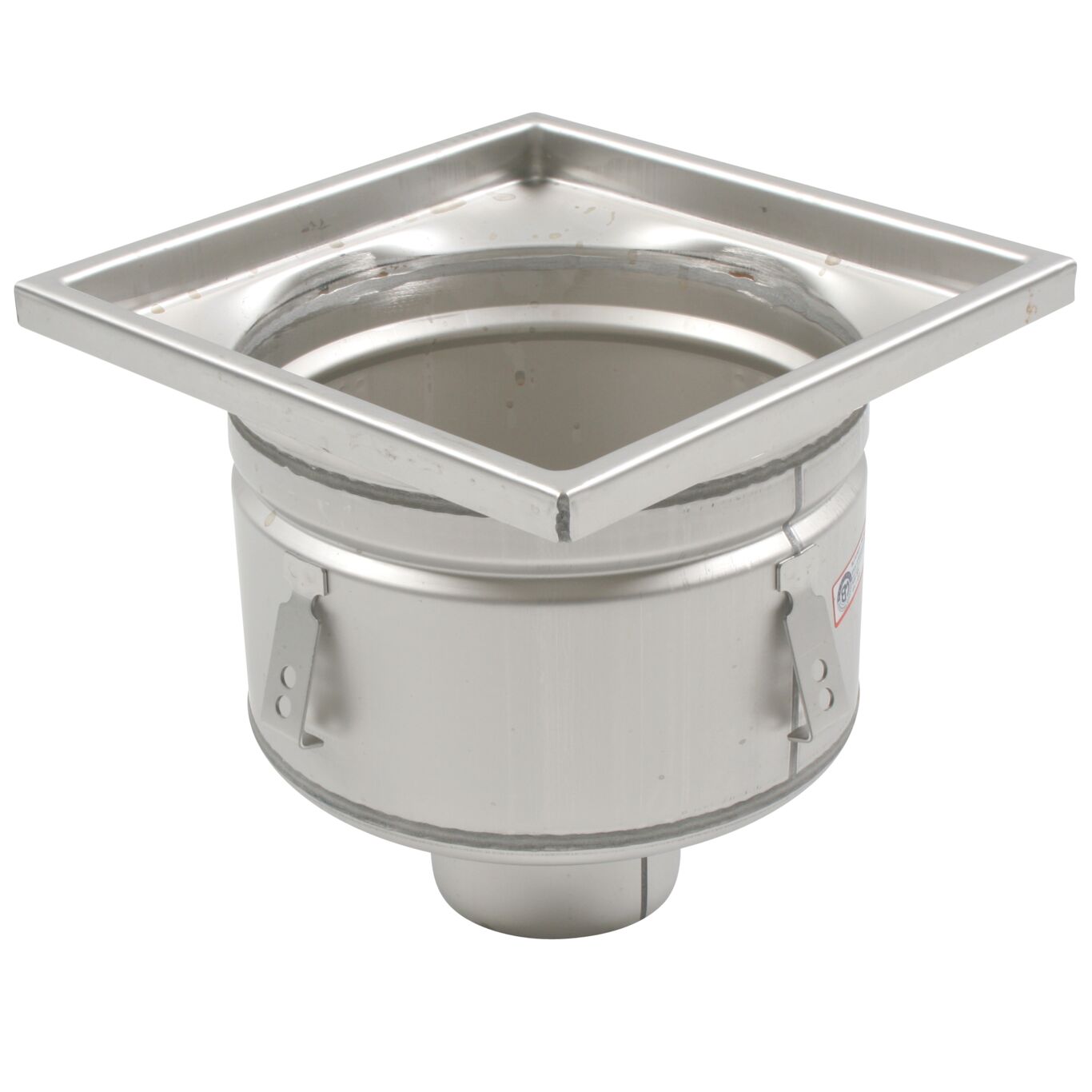

INDUSTRIAL DRAIN, LOW - (766.403.110 S)
×
![]()
Part Of the Series: Drain-No membrane-300
Type no.: 766.403.110 S
EAN no.: 5705499110371
VVS no.: 153002316
LVI no.: 3303567

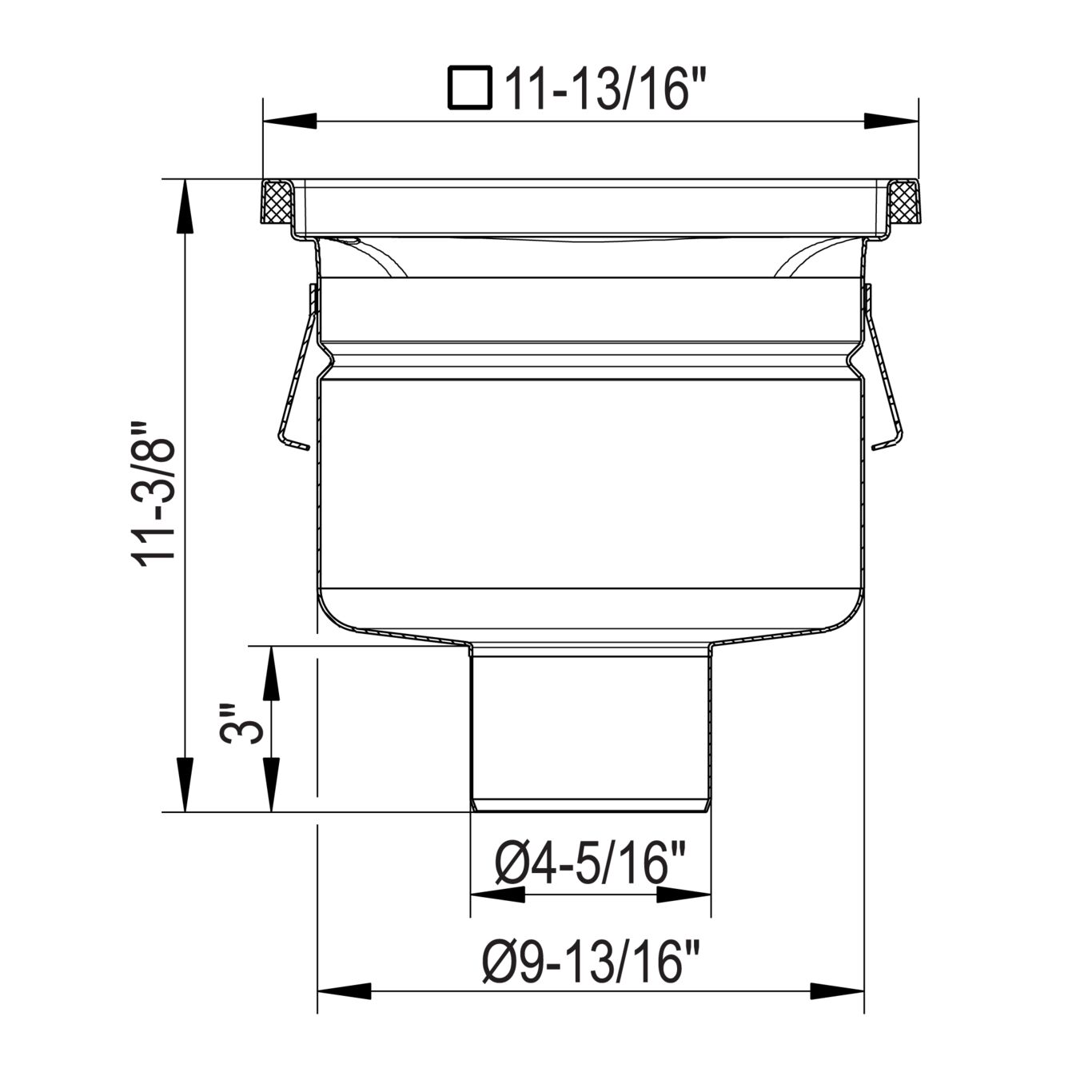

Size: 300x300
INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-No membrane, frame: 300x300mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
Part of USA order number: BFD-344-316
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Diameter (inch) | 4 |
| Outlet Direction | Vertical |
| Shape of frame | Square |
| Size of frame (mm) | 300x300 |
| Size of Frame (inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 4.75 |
| Weight (lbs) | 10.47 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
