UPPER PART - (774.602.000 S)
×
![]()
Part Of the Series: Upper part-Vinyl-232
Type no.: 774.602.000 S
EAN no.: 5705499112504
VVS no.: 153038146
LVI no.: 3303847

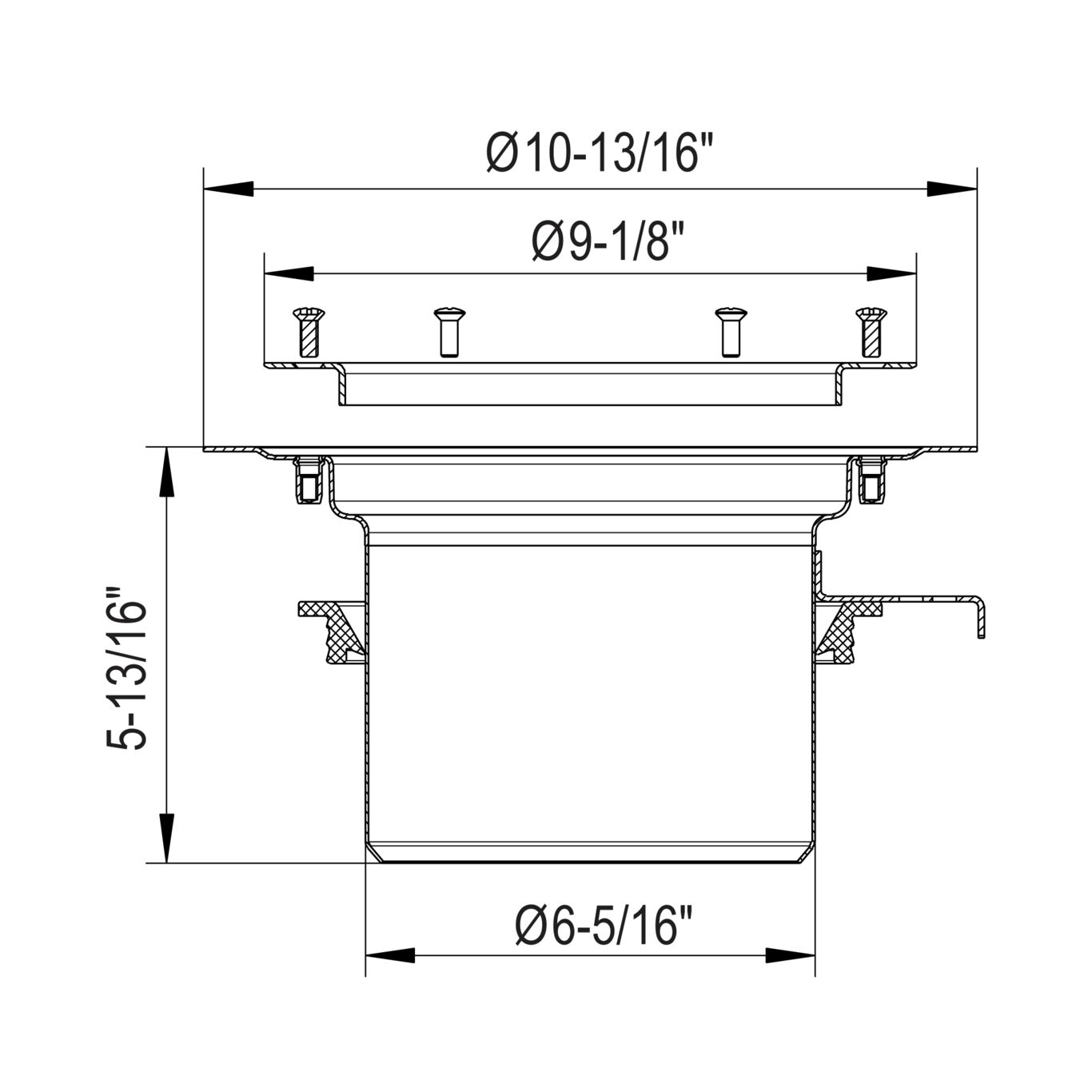

Size: Ø232
UPPER PART
-Floor: vinyl
-Frame: Ø232mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 148 |
| Holes for screws in drains | 0 |
| Outlet Diameter (mm) | 160 |
| Outlet Diameter (inch) | 6 |
| Shape of frame | Round |
| Size of frame (mm) | Ø232 |
| Size of Frame (inch) | Ø9-1/8 |
| Weight (kg) | 2.02 |
| Weight (lbs) | 4.45 |
-
Approval Information
For approval information, please refer to the below approval certificates.
