UPPER PART - (710.503.000 S)
×
![]()
Part Of the Series: Upper part-No membrane-305
Type no.: 710.503.000 S
EAN no.: 5705499108354
VVS no.: 153018348
LVI no.: 3303816
Size: Ø305

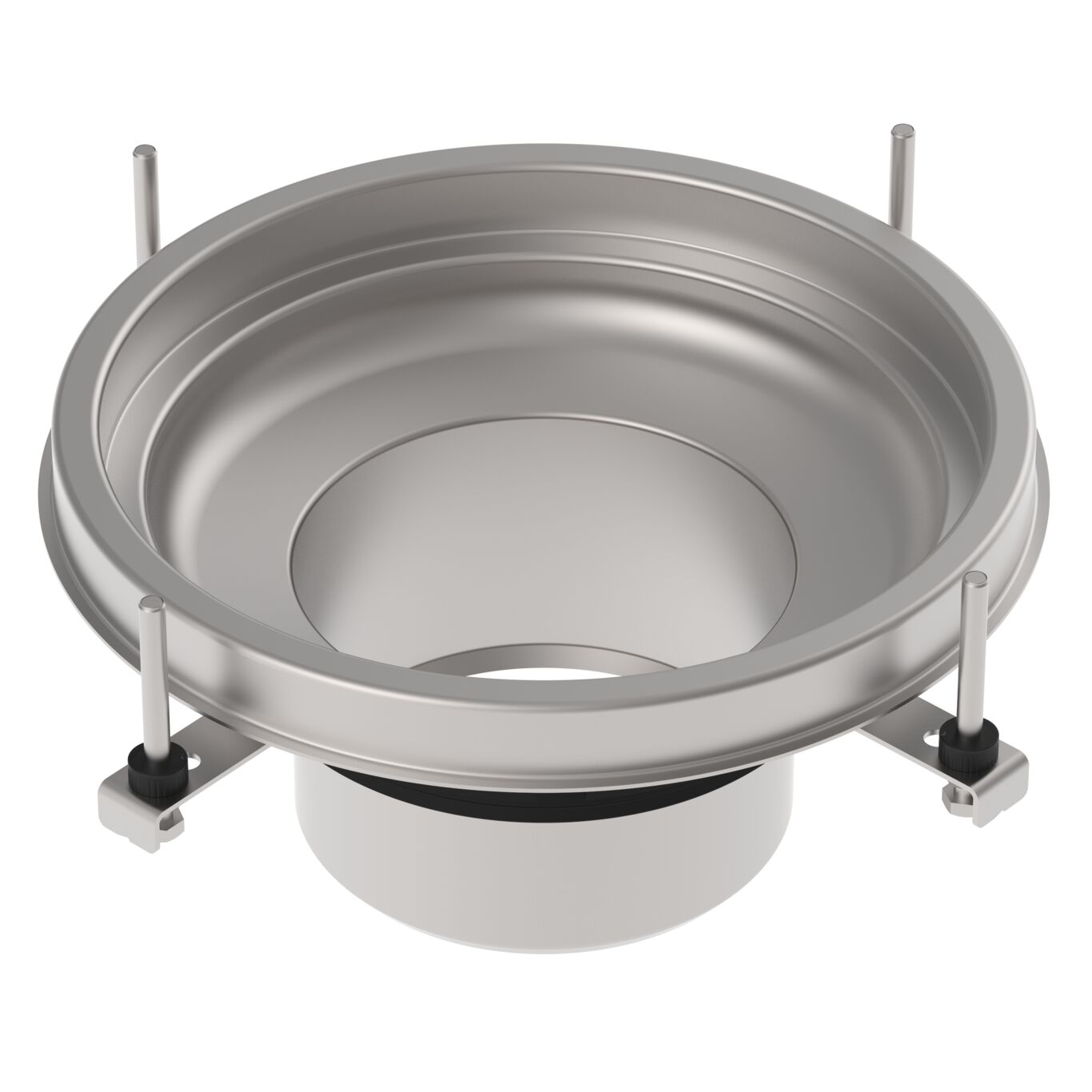

UPPER PART
-With supporting ring for water trap
-Floor: resin
-Frame: Ø12 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Floor | Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 157 |
| Holes for screws in drains | 0 |
| Outlet Diameter (mm) | 160 |
| Outlet Diameter (inch) | 6 |
| Shape of frame | Round |
| Size of frame (mm) | Ø305 |
| Size of Frame (inch) | Ø12 |
| Weight (kg) | 3.48 |
| Weight (lbs) | 7.67 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
